This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with network connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere on your local network or over the Internet. The main function of the camera is to transmit remote video over IP network. 5) Insert the MircoSD card to IP camera and power on the camera. 6) Wait for 1 min until hear a “clash”sound from the camera,the clash sound means Wi-Fi settings success. 7) Add the camera to App, Back to user manual Step4 Add the camera on the App. FAQ1: Wi-Fi setting failed sricam sricam123 Method-2: WiFi setting via scan QR Code.
Install APP • After you enter the URL into the download interface www.scc21.net according to mobile phone operating system to download and install the appropriate software to watch. Or scan the QR code on the package to download and install. • Android Phones can also search '9527' in 'Google play' and download • iPhone can also search '9527' in 'App Store' and download. • You can also scan QR code and complete the installation. Accession 1. First toggle 'Start button' boot and wait until the camera blue light flashing or on (if 60 seconds later the blue light didn't flashing or on, please long press the reset button for 3 seconds), then use a mobile to search the WiFi hot spot signals: Q7 or HD-Q7 (code: 12345678) emitted by camera. 2. After the successful connection of Q7 or HD-Q7, using a mobile phone to open the operating software ---> find 'local' page —> click 'settings' then select 'unlimited network settings' —> enter your home router username and password -->1 minute later, succeed or failed —> If failed, the camera return to the initialized state and the blue light flashing or on —> If succeed, the red light flashing or on. 3. After the success of joining the network, select 'remote' and then enter the account and password behind the camera body, or scan the QR code, then you can watch global real-time video. Reasons for the failure to join the network and precautions. TF card recording Night Open Forget your camera password 1. First toggle 'Start button' boot and wait until the camera blue light flashing or on (If 60 seconds later the blue light didn't flashing or on, please long press the reset button 3 seconds), then use a mobile to search the WiFi hot spot signals: Q7 or HD-Q7 (code: 12345678) emitted by camera. 2. After the successful connection of Q7 or HD-Q7, using a mobile phone to open the operating software —> find 'local' page —> click 'settings' —> then select 'unlimited network settings' —> enter your home router user name and password —> 1 minute Iater, succeed or failed —> If failed, the camera return to the initialized state and blue light flashing or on —> If succeed, the red light flashing or on. 3. After the success of joining the network, use mobile to open the operating software, find 'local' page click 'setting' --> choose 'system setting' again --> 'reset to defaults' --- wait for 60 seconds (After the successful recovery, there is the original account password.) Related parameters LED specification |
| Working condition (Mode) | Red | Blue |
| Initialized state (with a card) | Off | On |
| Initialized state ( with a card or being videotaping ) | Off | Blink |
| Internet status (no card or Pause videotaping) | Long bright | Off |
| Low battery | On | On |
| Battery charging | No status | No status |
| QR code | |
| Android | iPhone |
| • GF-07 • SQ11• A9 • SQ8 • T189 • TK905 • Mini A8 • |
Network P2p Wifi Ip Cameras User Manual User
| | EN | DE | ES | PT | IT | FR | NL | PL | JP | RU | HU | RO | GR | DK | BG | CN | CZ | FI | IN | KR | SE | PH | MY | TH | SI | SK | TR | UA | NO | |
| WIFI Camera Q7, HD-Q7 | © «Org-Info.Mobi» |
|---|

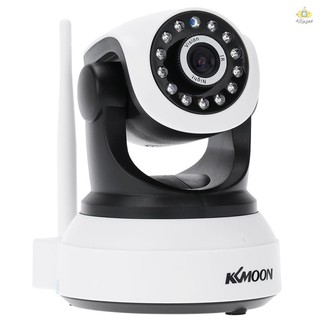

Features:
* H.264 1/4' Color CMOS Sensor 1,000k Pixels.
* Support QR Code Scanning.
* Maximum support 32GTF Card.
* High image & video quality, Two-way audio monitoring.* Both wired and wireless network connections are available.
* P2P(Plug & Play)technology, penetration degree can be 99%.
* Allow remote Pan/Tilt control (Pan : 355°& Tilt : 120°).
* Mechanical IR-Cut device offers outstanding day/night performance, great color.
* (1280 * 720) Pixels 720P/VGA/QVGA, dual stream.
Network P2p Wifi Ip Cameras User Manual Pdf
* Allow remote viewing & record from anywhere anytime.Network P2p Wifi Ip Cameras User Manual Download
* Wi-Fi compliant with wireless standards IEEE 802.11b/g/n.
Network P2p Wifi Ip Cameras User Manuals
* Support TCP/IP, SMTP, HTTP, FTP, PPPOE and other Internet related protocols.Specifications:
| Features: | |
| System Security | Account, password authority management |
| Free DDNS | Not support free DDNS, supports dynamic IP |
| View by Phone | Support HD pic IOS, Android mobile view (iOS 4.3, Android OS 2.3 above) |
| Local Storage | Support up to 32GB MicroSD card, 24-hour loop recording |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view |
| PnP | Plug & Play, 99% penetration rate, Easy to setup: 1, connect the network cable and power adapter. 2, install APP, scan UID code to add camera. ?3, Click online camera to view the camera. |
| QR Code Scanning | UID scan technology applied, easy to operate, and highly confidential. |
| Upgrade | Upgrade byremote via the web |
| Reset | Intelligent self repair function |
| Super Client | 1, 4, 9, 16, 25, 36, 64 channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email, ect. |
| System | |
| OS | Embedded Linux OS |
| Control Protocol | ONVIF 2.0 protocol, high interoperability |
| Video Coding | Multi stream: 720P(30fps) + VGA(30fps) + QVGA(30fps) |
| Bit Rate | CBR / VBR, output bit rate range: 128 - 4096kbps |
| Processor | Hi processor, built in ARM926 Max. 440MHz and high-speed video co-processor |
| Video | |
| Compression Format | H.264 |
| Frame Rate | 30fps/24fps(720p) |
| Resolution | 720P(1280 * 720), VGA(640 * 480), QVGA(320 * 240) |
| Sensor | 1/4 720p Progressive CMOS sensor |
| Minimum illumination | 0.5Lux |
| SNR | ≥54dB |
| Adjustable Video Parameters | Adjustable Saturation, brightness, contrast and sharpness |
| IR Control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
| Electronic Shutter | 1/50s(1/60s)-1/100, 000s |
| CMOS | Support AWB, AGC, BLC |
| Lens/Viewing Angle | 3.6mm(F1.4) |
| Night Vision | |
| Night Vision | 11pcs 850nmΦ5mm LED, 10m IR distance |
| Audio | |
| Compression format | ADPCM/32kbps |
| Audio channel | Built-in MIC, 1 channel audio output |
| Input | 1 Channel Internal -48dB Microphone |
| Output | 1 Internal speaker ( 8Ω1W ) |
| P/T Network | |
| P/T | Pan: 355°, Tilt: 120° |
| Preset Postion | Support up to 16 preset postions |
| Network Interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP, UNP/TP, HTTP, UDP, SMTP, FTP, DHCP, DDNS, UPNP, NTP, PPPOE |
| Wireless Network Security | WPS encryption |
| Online Visitor | Support 4 online visitors simutaneoursly |
| IP Address | Dynamic IP and static IP address |
| WIFI | IEEE 802.11 b/g/n |
| Alarm | |
| Alarm channel | Alarm input 1 road, 1 road alarm output |
| Motion Detection | Support motion detecting |
| System Requirement | |
| System Configuration | Win98 SE/ME/2000/XP, Vista, iOS4.3, The android version 2.3 or higher |
| Certificate | |
| Certificate | FCC CE RoHS |
| Other Information | |
| Model | TP-C547T |
| Housing Material | ABS |
| Application Environment | Indoor |
| Power Supply | DC 5V 2A |
| Temperature | -10-55 °C |
| Power Consumption | Rated power: 3.5W (IR opening ) / maximum power: 7W (P/T working ) |
| Color | White and Black |
| Item Weight | Approx. 301g / 10.63oz |
| Item Size | Approx. 11.2 * 13.2 * 13.0cm / 4.41 * 5.20 * 5.12in (L * W * H) |
| Package Size | Approx. 20.1 * 17.6 * 13.1cm / 7.91 * 6.93 * 5.16in (L * W * H) |
| Total Weight | Approx. 617g / 21.76oz |
| Quantity | 1pcs |
| Warranty | 1 Year |
Package list:
1 * IP camera
1 * UK Power adapter
1 * Mounting bracket
2 * Mounting screws
1 * CD
1 * User manual
1 * Warranty card
